IMBQ-STND (Standard)

The  IMBQ-STND pan/tilt tracking mount is designed to meet the needs of clients that are looking for a multi-sensor tracking mount (100kg) and a lighter-weight solutions.

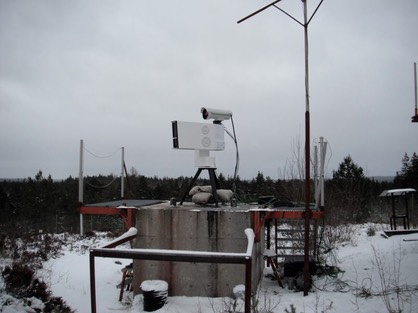

Video Tracking System Bofors


Tracking Mount Specifications

Description Performance
Payload 100kg/220lbs
Weight ~85lbs
Azimuth Range 360 deg
Elevation Range 360 deg
IMBQ Accuracy 36 arcsec
Available precision with encoder upgrade 12 arcsec
Repeatablity 36 arcsec
HP Repeatablity 7 arcsec
Max. Acceleration 180 deg/sec^2
Max Velocity 90 deg/sec
Min Velocity 0.02 deg/sec
Encoder Resolution 20 bit
