IMBQ-HP-V3 (New Product!)


The  IMBQ-HP-V3 Pan/tilt tracking mount is IMAGO’s newest tracking mount, offerring a stiffer chassis, an idler arm to minimize payload sag and 23-bit external encoders.   This upgrade of the IMBQHP-V2 increases the precision and the weight capacity of the HP-V series, increasing the accuracy and the payload by 30%.

The IMBQ-HP-V3 supports a 130kg multi-sensor payload and uses 23-bit encoders to offer high-accuracy  90 deg/sec closed loop tracking.

The IMBQ pan/tilt chassis is  precision milled out of a solid block of high grade 6000 series aluminium.  This process ensures there are no material flaws, minimal chassis flex, and that the axis are orthogonal for increased accuracy.

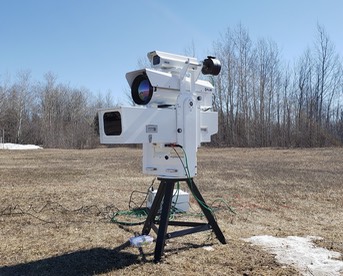

IMAGO Tracker with FLIR 8500 and Multiple Sensors



Like all IMAGO tracking mount the IMBQ-HP-V3 is designed to avoid parallax errors, this offers a real world accuracy advantages over our competitors.

Tracking Mount Specifications

Description Performance
Payload 130kg
Weight 80 kg
Azimuth Range 360 deg
Elevation Range 360 deg
IMBQ Accuracy 10 arcsec
HP Repeatablity 7 arcsec
Max. Acceleration 120 deg/sec^2
Max Velocity 90 deg/sec
Min Velocity 0.02 deg/sec
Encoder Resolution 23 bit
