Multi Sensor Trajectory and Control System

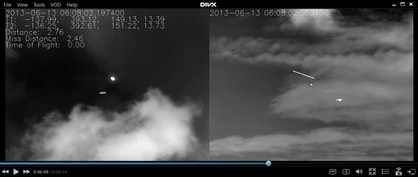

MissDistance2



IMAGO offers a range of tools to allow real-time and post-processing calculation of the trajectory of a tracked target (TSPI).

IMAGO’s Multi Sensor Trajectory and Control System  can provide the following functionality:

  • collects, processes and fuses  and displays sensor information.
  • calculates the target’s trajectory (TSPI)
  • accepts and records external radar tracking information
  • provides the target’s position to the range instrumentation for cueing purpose.
  • Miss Distance
  • Plotting
  • Mapping

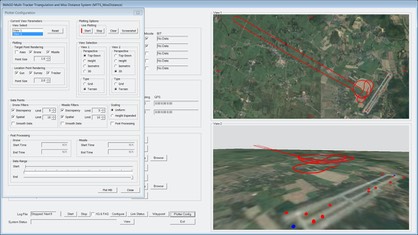

IMAGO TPSI Map Plotting



IMAGO’s  solutions are passive and do not emit RF signals and will work with most types of targets. The targets do not need to be enhanced or equipped with any special equipment.

The trajectory or Time-Space-Position-Information (TSPI) calculations can be done either during the flight (real-time),or after the flight (post-processing)

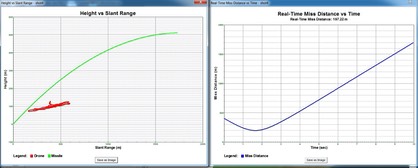

MissDistance Shot4
